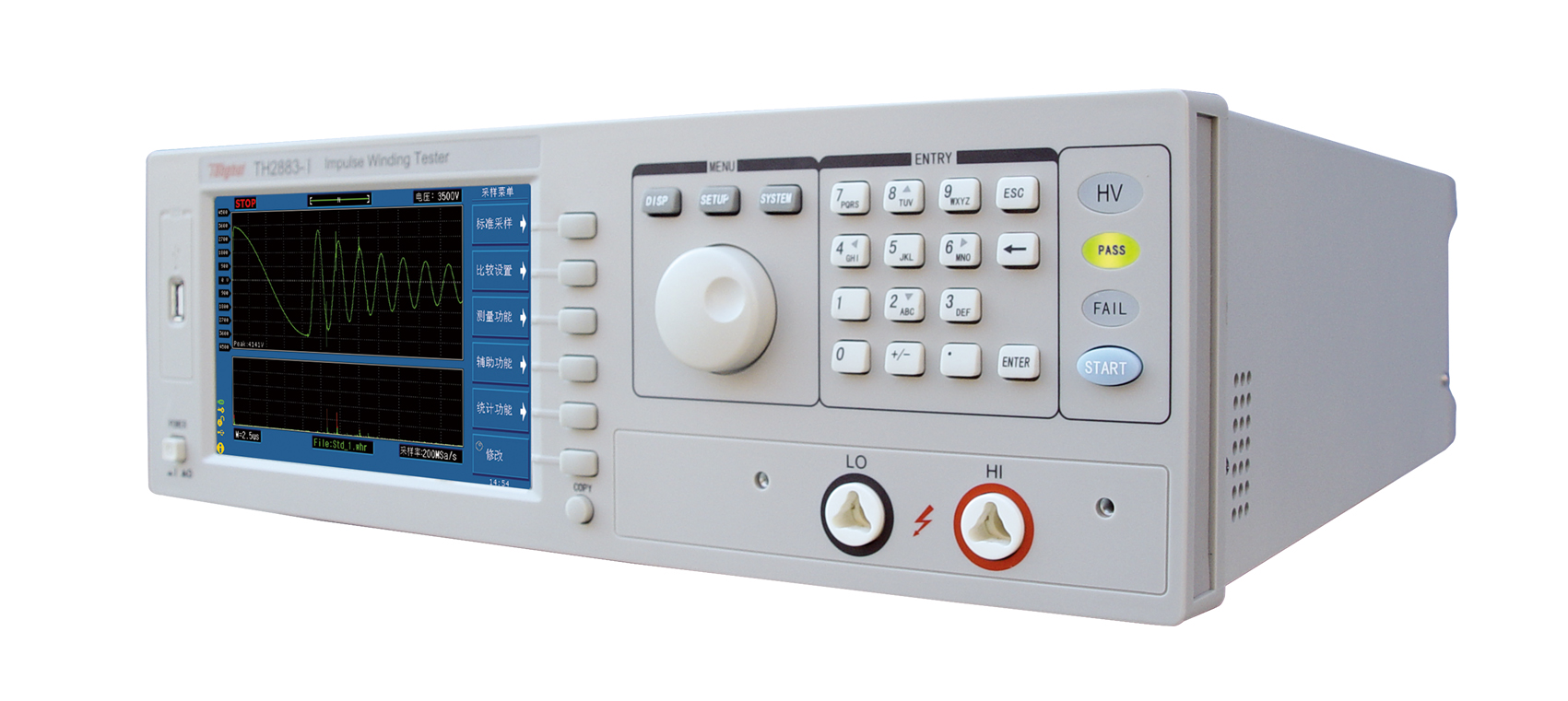

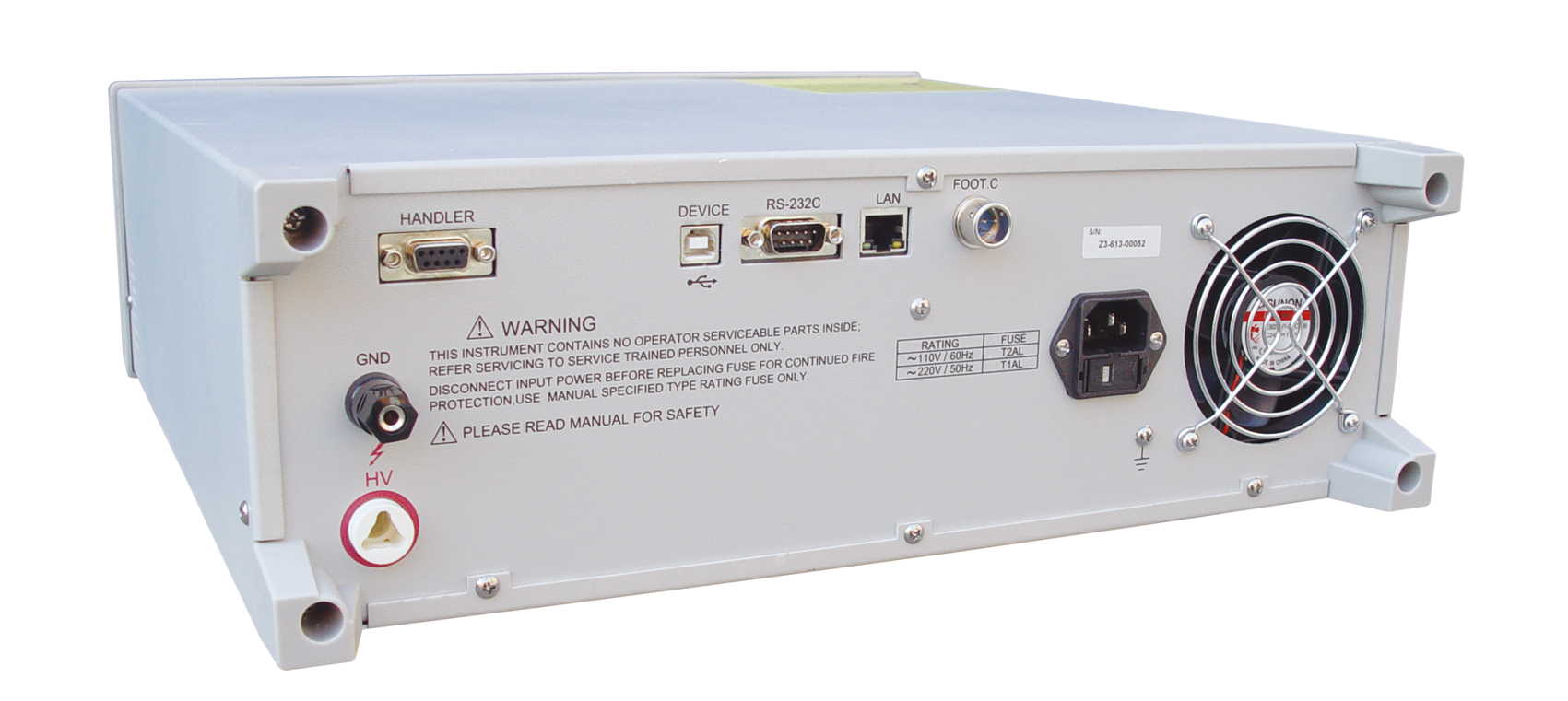

TH2883-1 pulse coil tester

Model:TH2883-1

Brand:同惠电子1

Introduction:TH2883 series products are developed by Tonghui pulse coil tester product line. Can fully provide low voltage 30V to high voltage 10kV, single channel to multi-channel (maximum 8 channels) series coil tester solutions. The product line uses the current mainstream 32bit CPU and high density SMD mount technology, 65k color color 7 "widescreen TFT disy. The operation function is simple and easy to use, and the disy interface is fresh and bright. With a minimum of 30V and a maximum of 10kV covering a wide range of pulse voltages, coil tests as low as 1uH inductance, a sampling rate of up to 200Msps, and a storage depth of 6k Bytes, your test is "hand in hand". TH2883 series is divided into three single-channel output models, TH2883-1, TH2883-5 and TH2883-10, according to different output voltages. TH2883-1 is a low inductance pulse coil tester. It has a minimum pulse voltage of 30V and a maximum pulse voltage of 1200V. It can test coils as low as 1uH inductance. It is an ideal test product for inductance coils used in switching power supplies. TH2883-5 has a wide range of pulse voltages ranging from 100V to 5000V, and is the standard product for testing various coils. TH2883-10 has a pulse output voltage of up to 10kV, enabling interturn testing of higher insulation withstand voltages. If equipped with TH28831 interturn insulation multichannel scanner, the above three single-channel tester can be expanded to 10 channels. The TH2883 series also provides four channel and eight channel multi-channel test in one machine, their corresponding models are TH2883S4-5 and TH2883S8-5 for users to choose flexibly. TH2883 series products are standard with USBHost, RS232C, USB Device and LAN interface.
